Installation

Have your mount or stand ready for use with these quick tips!

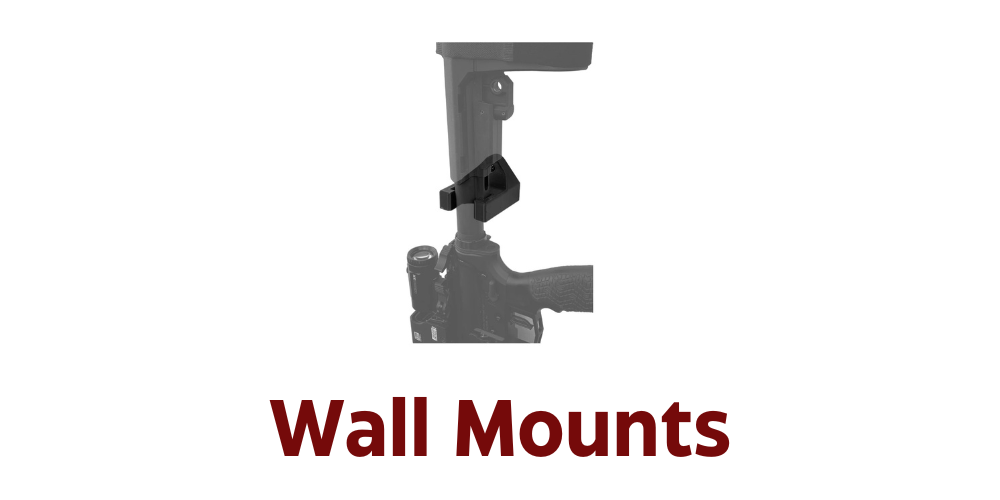

Wall Mounting Instructions

What You'll Need

Mounting to Drywall (Procedure Shown Below):

  • 65lb drywall anchors (Included)
  • #8 screws (Included)
  • Drill with 1/4" drill bit
  • Phillips extension (If using a drill)
  • Long Screwdriver (If not using a drill)
  • Leveler tool

Mounting to Solid Backing:

  • #8 screws (Included)
  • Drill with 1/8" drill bit (recommended but not required)
  • Phillips extension (If using a drill)
  • Long Screwdriver (If not using a drill)
  • Leveler tool

Mark & Level

  • Place your mount on the wall (Stud is recommended).
  • Level the mount.
  • Mark the hole locations.

Drill

  • Drill a 1/4" hole for drywall anchors.

Insert Anchors

  • Tap the drywall anchors into the drilled hole.

Install

  • Align the mount with the holes and install the screws.
  • Be careful not to overtighten.

Mount

  • Place the rifle on the mount and show it off!

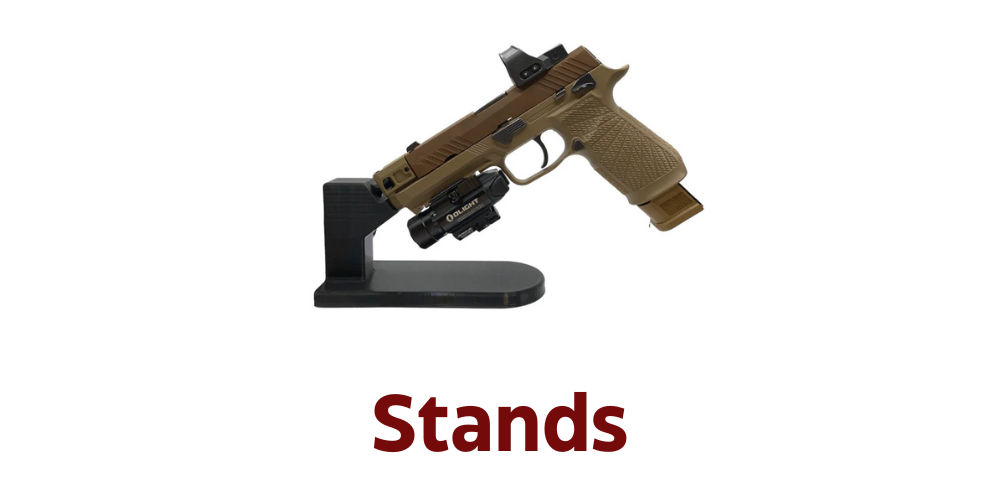

Stand Instructions

Remove the thin white films from the adhesives. The black circles are rubber and are used in combination with the adhesives to allow for stand to stay secure.
